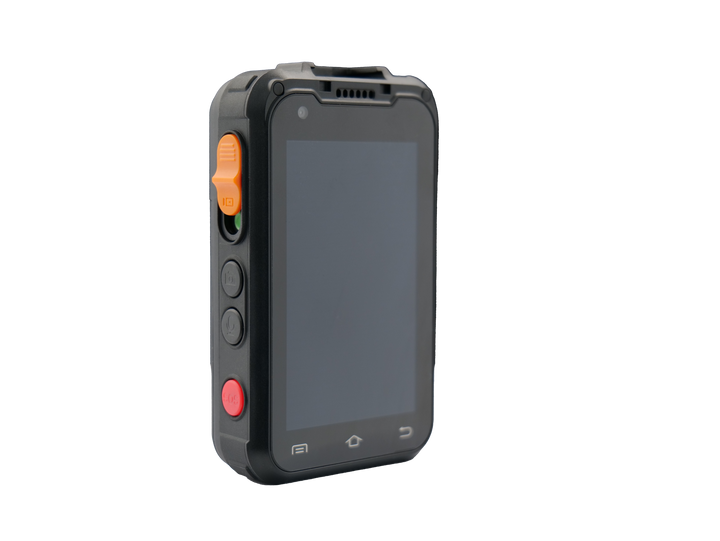

MQS1 2K @30fps Body Camera

  • MT6769 main chip + 64GB (up to 512GB) memory

  • 3400mAh removable Li-Po battery

  • IP 66 adaptive to various environments

  • Android 12.0

  • 2 meters drop protection

  • Support face recognition (optional)

  • 3.0 inches HD touchscreen

  • QR code scanning & TTS

  • Support file upload to cloud servers & resume function

Downloads:

Book A Demo Today, And Explore more

Real-Time HD Video + AI Recognition

· 2K resolution (2560×1440@30fps) with H.265 compression for efficient bandwidth/storage use.
· Optional face recognition with offline alarm capabilities—enables immediate identification without network dependency, crucial for security operations.


Military-Grade Rugged+ Professional Durability

· IP66 waterproof/dustproof rating and 2-meter drop protection—built to withstand extreme environments (from -20℃ to +55℃).
· Critical for field use in the public safety, law enforcement, and industrial sectors where devices face harsh conditions.


Applications

Law Enforcement & Public Safety

Industrial & Utility Inspections

Emergency & Disaster Response


Specifications

Hardware
Operating systemAndroid 12.0
SOC chipMT6769 8 Cores CPU 64 bit, 2GHz. 12nm
Internal storage3G + 32G eMMC(4+64/4+256 for optional)
Network
BluetoothBuilt-in
PositionSupport GPS/BDS/GLONASS(optional)
WiFi2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
Cameras
Effective pixels4-Megapixel
Video resolution 2560×1440/30fps
1920×1080/30fps
1280×720/30fps
Video formatMP4
CompressionH.264/H.265
Dual-streamSupport hard-coded dual stream
Photo formatJPG, 48 Megapixel
Secondary camera8MP
Rear camera2MP
Others
Display3.0 inches HD touchscreen(480*800)
SIM cardBuilt-in, Nano card
TF cardBuilt-in, TF-Card/64GB( scalable to 256GB)
G-SensorBuilt-in
NFCSupport(optional)
USBType-C
Flash lightBuilt-in
Laser lightSupport(optional)
Red and blue warning lightsBuilt-in
IR night vision4 infrared lights, the recognition range can reach 3 meters for faces, and the detection range can reach 10 meters for human body
