Reliable Witness for Accident
High speed 4G network enable photos, videos and GPS position as required upload to the cloud for later evidence review purposes.

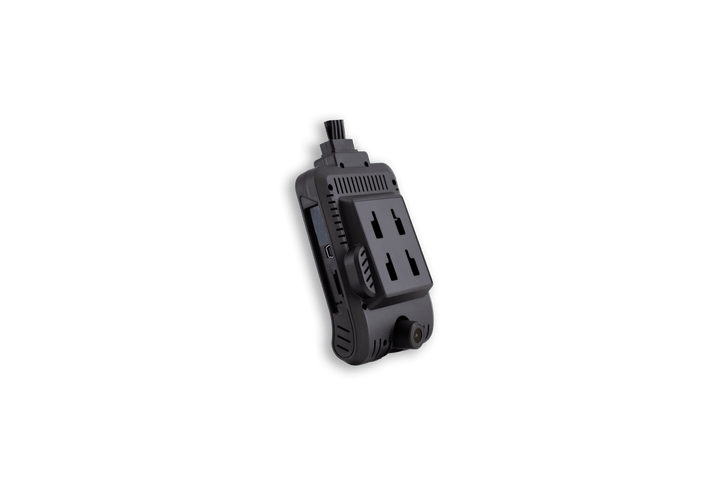

MC403 is an advanced dash camera with 1 built-in camera and 3 extended cameras, supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and inappropriate driver behavior such as using mobile phones, fatigue driving, smoking detection, lens covered detection to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
High speed 4G network enable photos, videos and GPS position as required upload to the cloud for later evidence review purposes.
Device supports 1 built-in ADAS dash camera, 3 remote cameras, capturing crystal-clear views at 1080P + 3*1080P @30fps for double protection and safer daily driving.
It offers 1080P HD resolution video, microphone, and speaker. Enjoy clear live video and monitor your car remotely, anytime, anywhere.
The device supports simultaneous data upload to a maximum of 4 platform servers.
2 RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader.
Efficient SOS button and platform swiftly summon rescue services with a single click.
Operation system | Linux |
---|---|
CPU | Dual-core CPU+NPU@1.0T |
Memory | DDR 2G + TF card (Max. 512G) |
GNSS | GPS+BDS (with external G-mouse) |
G-sensor | 3-axis acceleration sensor |
Speaker | Yes |
Mic | Yes |
Sim card | Standard SIM |
USB | Yes |
LED | Red(Power), Green(Internet & video recording) |
I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
Cellular | LTE + WCDMA + GSM |
---|---|
Bands |
MC403-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 MC403-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 MC403-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
WIFI | 2.4GHz, 802.11 b/g/n |
Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
Front | 1080P ADAS/82°(HFoV) |
---|---|
External 1 | 720P |
External 2 | 720P |
External 3 | 720P |
Video encoding | H.264/H.265, default H.264 |
Video standards | PAL, NTSC |
Video resolution | Options: 1080P/720P/D1 Total 1080P at 100 fps |
Compression format | G.711A |
Power supply | DC: +9V ~ +36V |
---|---|
Operation Temperature | -25°C to +70°C |
Operation Humidity | 20% to 80% |
Net weight | 300g |
Dimension | 138mm*85mm*45mm |
Certification | CE/FCC/RoHS |
