Reliable Witness for Accident
High speed 4G network enable photos, videos and GPS position as required upload to the cloud for later evidence review purposes.

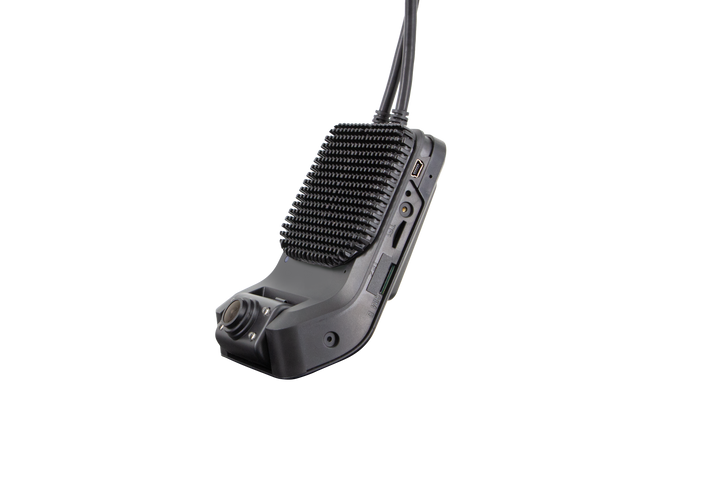

MC401 4-Channel AI Dashcam
MC401 is an advanced dash cam with 2 built-in and 2 extended cameras, supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and inappropriate driver behavior such as cell phone use, fatigue driving, smoking, lens covered detection to assist drivers in reducing traffic accidents and improve vehicle management efficiency.
Downloads:
Book A Demo Today, And Explore more
Main Features
4-CH Recording with DMS and ADAS
The device has 2 AI dash cameras and 2 extended cameras that capture clear images for double safety while driving.
Remote Video & Audio Surveillance
MC401 offers 1080P HD resolution video with microphone and speaker, providing clear live video for remote vehicle monitoring.
Expanded Storage
1 * TF card for video storage, Max. 512GB.
Extension Interface
1 * RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader,2 digital input and 1 digital output.
Easy to Use
Providing a mobile app and a software platform for video preview and parameter configuration.
Specifications
Hardware
| Operation system | Linux |
|---|---|
| CPU | Dual-core CPU+NPU@1.0T |
| Memory | DDR 2G+ TF card (Max.512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Micro SIM |
| USB | Yes |
| LED | Red(Power), Green(Internet & video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
Network
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC401-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 MC401-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 MC401-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
Cameras
| Front | 1080P ADAS/125°(HFoV) |
|---|---|
| Cabin | 720P IR night vision DMS/105°(HFoV) |
| External 1 | 720P |
| External 2 | 720P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 100 fps |
| Compression format | G.711A |
Others
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 240g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC/RoHS |
