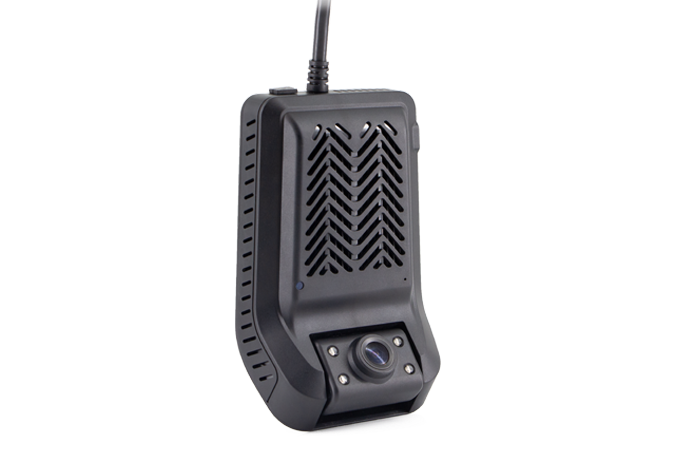

MC202X 2-Channel AI Dashcam
MC202X is an advanced AI-powered dash cam designed for enhanced vehicle safety and fleet management. It features real-time driving behavior monitoring, including lane departure, collision warnings, and fatigue detection. The MC202X, a super updated version compared with the MC202, introduces Power Disconnection Alert, ensuring uninterrupted video recording by switching to backup power during power disruptions. With real-time alerts and enhanced security, the MC202X provides fleet operators with reliable, continuous protection for vehicles and assets.
Book A Demo Today, And Explore more
Book Your DemoMain Features
Power Disconnection Alert
Seamlessly records and sends alerts, ensuring data safety and immediate notifications of power disruptions.
2-CH Recording with DMS and ADAS
Dual AI dash cam with front and cabin view, 1080P+1080P@30fps, ensuring clear, smooth recordings and double protection.
Remote Video & Audio Surveillance
1080P HD, built-in mic & speaker. Remote car monitoring anytime, anywhere.
Reliable Witness for Accident
High-speed 4G allows for cloud uploads of photos, videos, and GPS data for evidence review.
Extension Interface
Includes 1 RS232 port for sensors like fuel or temperature sensors, RFID reader, and an SOS button.
Expanded Storage
1TF card slot for video storage, supporting up 512GB capacity.
| Operation system | Linux |
|---|---|
| CPU | Dual-core CPU+NPU@1.0T |
| Memory | DDR 2G+TF card (Max.512G) |
| GNSS | GPS+BDS (with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Micro sim |
| USB | Yes |
| LED | Red(Power), Green(Internet & video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC202X-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 MC202X-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 MC202X-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
| Front | 1080P ADAS/116°(HFoV) |
|---|---|
| Cabin | 1080P IR night vision DMS/116°(HFoV) |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 60 fps |
| Compression format | G.711A |
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 252g |
| Dimension | 126mm * 79mm * 63mm |
| Certification | CE/FCC/COC/RoHS/CITC/ICASA |
