Reliable Witness for Accident
High speed 4G network enable Photos, videos and GPS position as required upload to the cloud for later evidence review purposes.

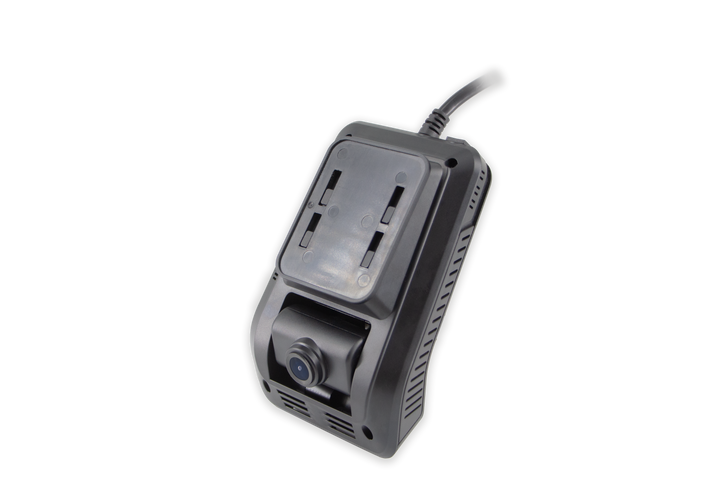

MC202A 1-Channel AI Dashcam
MC202A is an advanced dash camera with a built-in Al processor to detect driving events such as lane departure, forward collision, headway monitoring warning to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
Downloads:
Book A Demo Today, And Explore more
Main Features
1-CH Recording with ADAS
Built-in AI dash cam with front view,1080P@30fps for clear and smooth recording, providing double protection for a safer driving environment.
Remote Video & Audio Surveillance
MC202A offers 1080P HD resolution, microphone, and speaker. Enjoy clear live video and monitor you car remotely, anytime, anywhere.
Expanded Storage
1 TF card for video storage, Max 512GB.
Extension Interface
1 RS232 interface to connect sensors such as fuel sensor, temperature sensor, RFID reader and 1 panic button.
Easy to use
Mobile APP, PC, and software platform for video preview and parameter configuration are provided.
Specifications
Hardware
| Operation system | Linux |
|---|---|
| CPU | Dual-core CPU+NPU@1.0T |
| Memory | DDR 2G+ TF card (Max.512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Micro sim |
| USB | Yes |
| LED | Red(Power), Green(Internet & video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
Network
| Cellular | 4G LTE Cat.1 |
|---|---|
| Bands | FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
Cameras
| Front (Built-In) | 1080P ADAS/116°(HFoV) |
|---|---|
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Option: 1080P/720P/D1 Total 1080P at 60 fps |
| Compression format | G.711A |
Others
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 240g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC/RoHS |
