MC201 2-Channel 2K AI Dashcam
Pioneering the future of road safety, the all-new AI Dash Cam features a built-in 2K camera paired with an external 1080P camera. Equipped with ADAS and DMS, it boasts a high definition 2K-level camera that captures every detail. Safer and more stylish, it marks the beginning of a new era in smart driving.
Book A Demo Today, And Explore more
Book Your DemoMain Features
Dual-lens Recording with 2K Lens
Front camera: 4MP recording in 2K Ultra High Definition.
Driver Monitoring System (DMS)
Supports driver fatigue warning, distraction warning, yawning detection, smoking detection, using cell-phone detection, camera being covered.
Real-time Tracking
Provide precise real-time location tracking at App and Web platform. Check history routes and rich daily and monthly report.
High Sensitivity 6-axis Gyroscopes
High sensitivity gyroscopes effectively detect sudden accelerations, decelerations, sharp turns and collisions, monitoring real-time motion or status. Integrated with GPS systems, output more precise positioning and route data.
Remote Video Surveillance
With built-in 4G LTE module, remotely viewing live streaming videos and engage in two-way communication through cloud platform(Web&APP).
Advanced Driver-assistance System (ADAS)
Supports forward collision warning, lane departure warning, pedestrian detection, close driving distance warning, and solid line lane-changing warning.
SOS Alert
Instantly trigger a panic alert using the discreet mini SOS Button in your vehicle's cabin, ensuring swift assistance during emergencies.

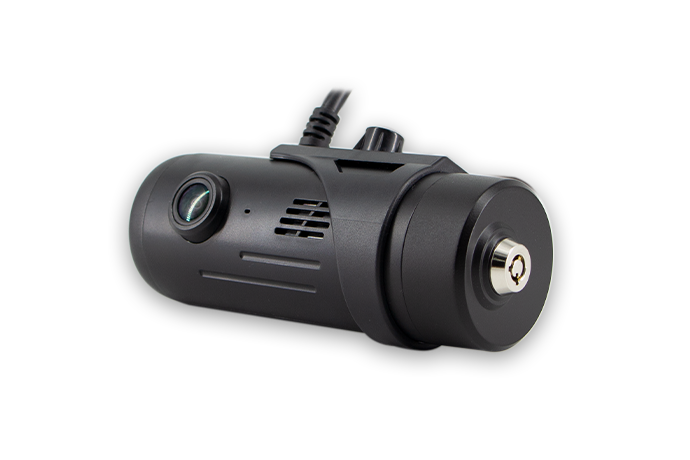

Unique Cylindrical Design
Compact cylindrical design, only 40mm diameter x 120mm height. No impact on driving experience.
| Operating System | Linux |
|---|---|
| CPU | Dual-core CPU + NPU@1.0T |
| Memory | DDR 2G + TF card (Max.512G) |
| GNSS | GPS + BDS (with external G-mouse) |
| G-sensor | 6-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Nano SIM |
| I/O ports | 1 digital input, 1 digital output |
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC201-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 MC201-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5 GSM: B2/B3/B5/B8 MC201-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
| Front | 2K ADAS/130° (HFoV) |
|---|---|
| External | 1080P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video Resolution | D1/HD1/CIF options available. |
| Compression format | G.711A. |
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | <90% |
| Net weight | 161.8g |
| Dimension | 120mm * 40mm * 40mm |
| Certification | CE/FCC/RoHS. |
