12-CH camera
The device could supports 12 channel 1080P camera simultaneous working.

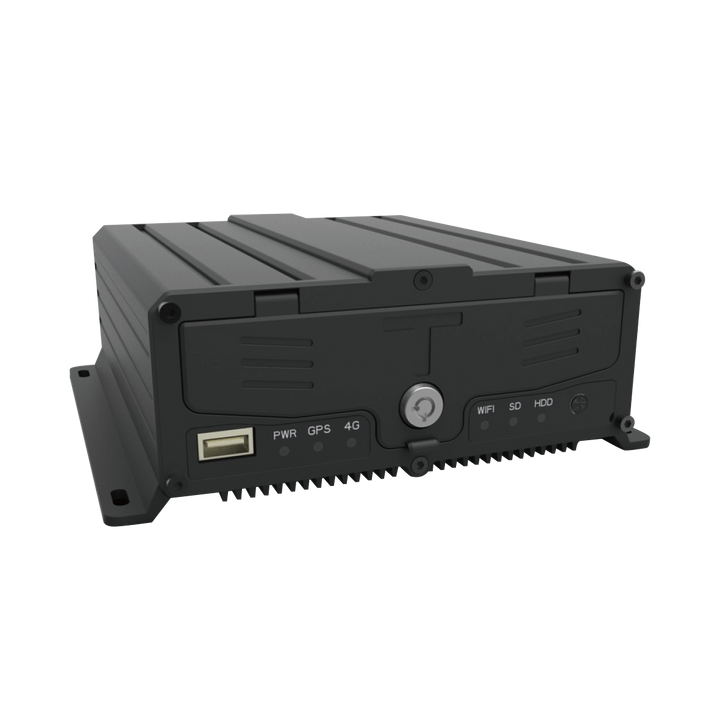

MC912 12-Channel AI MDVR
MC912 is a 4G MDVR that supports up to 12 channels of 1080P cameras. It has a built-in hard drive with a maximum capacity of 4TB and supports a maximum 512GB SD card. The video encoding is compatible with H.265, making it suitable for long-term storage scenarios.
The device is equipped with built-in AI algorithms, supporting ADAS, BSD, DMS, and 360-degree panoramic view. It features a pure aluminum alloy shell, ensuring a lightweight and sturdy construction with excellent heat dissipation. This device can be applied to vehicle management, enhancing traffic safety and reducing accidents.
Downloads:
Book A Demo Today, And Explore more
Main Features
AI Algorithm
The device supports ADAS, BSD, DMS, and 360-degree panoramic view four algorithms.
H.265/H.264 encode
H.265/H.264 encoding and decoding to improve the memory space utilization.
Large memory
Supports a maximum 512GB SD card and a maximum 4T hard disk.
Multiplex I/O
Support up to 7 digital input,2 digital output, 1 USB ports, 3 RS232 ports,1 RS485 port,2 CAN ports and 1 network interface. External devices such as RFID reader, fuel sensors and PTZ can be integrated.
Convenient operation
users can control device via APP for effective operation and simple use with Wi-Fi hotspot.
Specifications
Hardware
| Operation system | Linux |
|---|---|
| CPU | ARM Cortex A53 Quad-Core + NPU@1.2T |
| GNSS | GPS+BDS (with external G-mouse) |
| Memory | DDR 2G SATA HD (Max. 4T)*1, SD card (Max. 512G)*1 |
| G-sensor | 3-axis accelerometer & 3-axis gyroscope sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Standard SIM |
| LED | Red(Power), Green(GPS & 4G & WIFI & SD & HDD) |
| I/O ports |
7*digital inputs, 2*digital output, 3*RS232, 1*RS485, 1*Network Interface • 1*USB ports, 3*RS232 ports, 1*RS485 port, 2*CAN ports, 1*10M/100M Adaptive network interface |
| Others | 1-channel voice intercom interface to connect voice handle |
Network
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC912-EU: FDD LTE: B1/B3/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 MC912-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 MC912-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
Cameras
| Extended | 12-CH CVBS, 1.0Vp-p, 75Ω, 1080P |
|---|---|
| ADAS | Yes |
| DMS | Yes |
| BSD | Yes |
| 360-degree panoramic view | Yes |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1/HD1/CIF Total 1080P at 240 fps |
| Compression format | G.711A |
Others
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -10°C to +70°C |
| Operation Humidity | 8% to 90% |
| Net weight | 1600g |
| Dimension | 195mm*183mm*60mm |
| Certification | CE/FCC/RoHS |
