Product Video
MS101P Bus Monitor includes MDVR, dual bus screens, and a vehicle tracking system, and it also displays driver info, company details, and real-time route data to ensure a safer, more secure journey.
See how it keeps passengers safe.

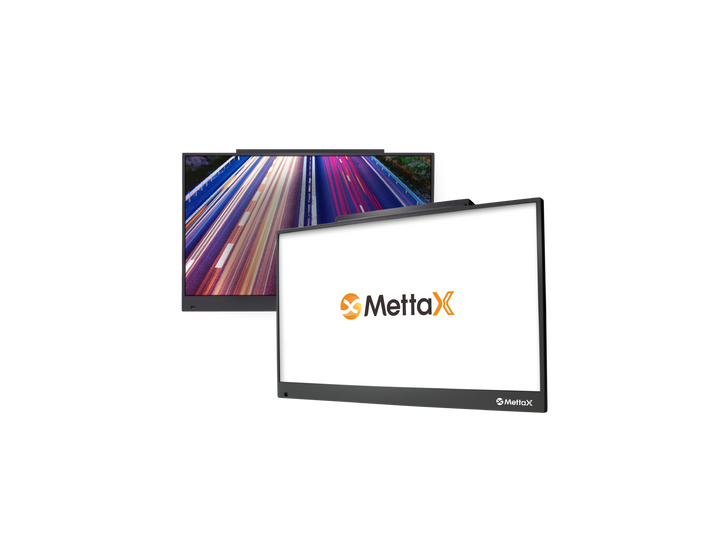

MS101P Bus Monitor
The MettaX Bus Monitor solution consists of one Mobile Digital Video Recorder (MDVR), one primary bus monitoring screen, one secondary bus monitoring screen, and a vehicle tracking and management system. This system has been approved by the Public Transport Authority in Saudi Arabia (WASL PLATFORM).
On the monitor screen, passengers will find essential bus information listed, including the driver's name, driver ID, company name, company number, operation card details, and real-time bus route information. With the MettaX Bus Monitor solution, passengers can enjoy a safe and secure journey.
Downloads:
Book A Demo Today, And Explore more
Specifications
Screen
| Size | 15.6 inch |
|---|---|
| Ratio | 16:9 |
| Screen Type | TFT-LCD |
| Backlight | LED |
| Display area | 344.16(H) × 193.59(V) mm |
| Resolution | 1920(H) × 1080(V) pixels |
| Display colors | 16.7M colors |
| Brightness | 250 cd/m² |
| Contrast | 700:1 |
| Response Time | 30 ms |
| Viewing Angle | 85 ° |
| Life Time | 15000 hours |
Interface
| HDMI Output | HDMI *1 |
|---|---|
| USB | USB2.0 *2 |
| WIFI ANT | SMA *1 |
| GPS ANT | SMA *1 |
Drive Board
| Operating System | Android 12 |
|---|---|
| CPU Model | H618 |
| CPU Type | Cortex-A53 |
| CPU Core | 4 Core |
| CPU Frequency | 1.5-1.8 GHz |
| GPU | Mail-G31 MP2 |
| RAM | 4 GB |
| ROM | 32 GB |
| WIFI | 802.11 b/g/n, 2.4G |
| GPS | GPS / GLONASS / BeiDou |
| IR Remote | IR Remote *1 |
| Product Size (WHD) | 35522525.5 mm |
Power
| Power Supply | DC 9V~36V |
|---|---|
| Current | MAX 2.5 A |
| Watt | MAX 10 W |
| Standby power consumption | 25 mA |
Environment
| Operating Temperature | 0-50 °C |
|---|---|
| Operating Humidity | 5-95 % |
| Storage Temperature | -20-60 °C |
| Storage Humidity | 5-95 % |
Media & Applications
| Speaker | 4Ω/3w *2 |
|---|---|
| Audio | MP3, AAC, WAV, FLAC, APE |
| Video | MPEG, AVI, RM, FLV, ASF/WMV, MP4, MKV |
| Picture | JPEG, BMP, PNG |
| Google Market | Pre-installed |
| Google Chrome | Pre-installed |
| Third party APP | Available/Customizable |
| APP Upgrade | Market/MDM |
| OS Upgrade | Local USB Upgrade and Remote Upgrade |
