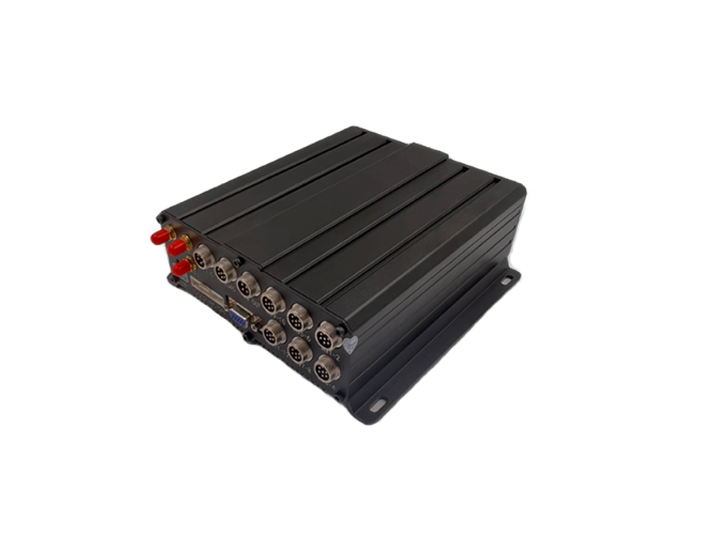

MC912 is a 4G MDVR that supports up to 12 channels of 1080P cameras. It has a built-in hard drive with a maximum capacity of 4TB and supports a maximum 512GB SD card. The video encoding is compatible with H.265, making it suitable for long-term storage scenarios.
The device is equipped with built-in AI algorithms, supporting ADAS, BSD, DMS, and 360-degree panoramic view. It features a pure aluminum alloy shell, ensuring a lightweight and sturdy construction with excellent heat dissipation. This device can be applied to vehicle management, enhancing traffic safety and reducing accidents.
The device could supports 12 channel 1080P camera simultaneous working.
The device supports ADAS, BSD, DMS, and 360-degree panoramic view four algorithms.
H.265/H.264 encoding and decoding to improve the memory space utilization.
Supports a maximum 512GB SD card and a maximum 4T hard disk.
Support up to 7 digital input,2 digital output, 1 USB ports, 3 RS232 ports,1 RS485 port,2 CAN ports and 1 network interface. External devices such as RFID reader, fuel sensors and PTZ can be integrated.
users can control device via APP for effective operation and simple use with Wi-Fi hotspot.
· 12× AHD cameras + 1× IP camera for full 360° surveillance — delivers full-vehicle visibility, supports blind-spot monitoring, cabin surveillance, and incident recording across all critical angles.
· Comprehensive multi-camera MDVR system for maximum safety & oversight — for safety compliance, passenger protection, and fleet-wide monitoring.
· Engine cut-off control for improved fleet security and safety — remotely disables vehicle ignition when unauthorized use, theft, or emergencies occur.
· Integrated engine shut-off protection — enhances asset control, theft prevention, and safety compliance for commercial fleets, transport companies, and passenger services.
MC912 12-Channel AI MDVR comes with built-in AI algorithms for ADAS, BSD, DMS, and 360° panoramic view, and features a lightweight aluminum alloy shell that ensures durability and excellent heat dissipation.
Tap to explore dual-storage MDVR.
| Operation system | Linux |
|---|---|
| CPU | ARM Cortex A53 Quad-Core + NPU@1.2T |
| GNSS | GPS+BDS (with external G-mouse) |
| Memory | DDR 2G SATA HD (Max. 4T)*1, SD card (Max. 512G)*1 |
| G-sensor | 3-axis accelerometer & 3-axis gyroscope sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Standard SIM |
| LED | Red(Power), Green(GPS & 4G & WIFI & SD & HDD) |
| I/O ports | 6*Digital inputs + 1*RS232 + 1*RS485 + 1*RJ45 |
| Others | 1-channel voice intercom interface to connect voice handle |
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC912-EU: FDD LTE: B1/B3/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 MC912-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 MC912-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
| Extended | 12-CH CVBS, 1.0Vp-p, 75Ω, 1080P |
|---|---|
| ADAS | Yes |
| DMS | Yes |
| BSD | Yes |
| 360-degree panoramic view | Yes |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1/HD1/CIF Total 1080P at 240 fps |
| Compression format | G.711A |
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -10°C to +70°C |
| Operation Humidity | 8% to 90% |
| Net weight | 1600g |
| Dimension | 195mm*183mm*60mm |
| Certification | CE/FCC/RoHS |
