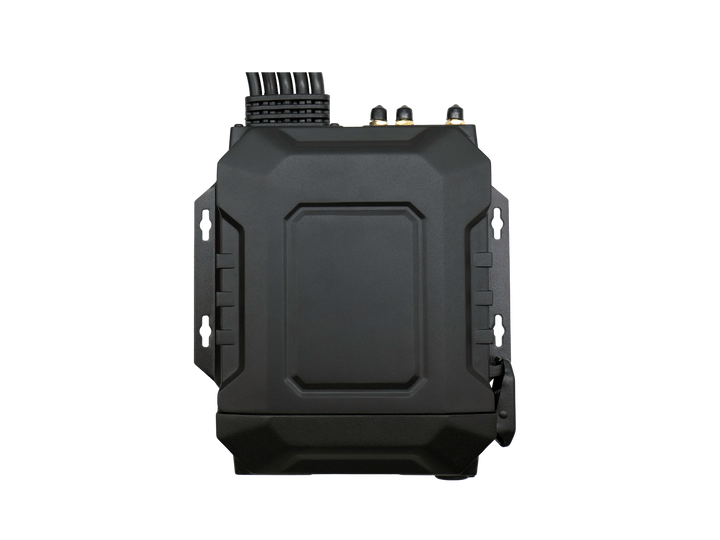

Black electronic device Mobile DVR

MC908F 8-CH IP66 AI MDVR

  • 4*AHD CAM + up to 4*IP Channels 1080P
  • H.264 High-Efficiency Compression:
  • 4G/Wi-Fi Transmission
  • GPS/BDS/GLONASS Tracking
  • Built-in G-Sensor
  • RS232 and RS485 Ports
  • 1×2TB SSD (2.5 inch SATA) + 2×256G SD
  • IP66 Rugged Industrial Design
  • Wide Vehicle Compatibility
Downloads:
Catalog

Book A Demo Today, And Explore more

Book Your Demo
Specifications

Hardware
Alarm Input/Output4-channel on/off signal alarm input, 2-channel on/off signal alarm output
Communication Ports1 channel RS232, 1 channel RS485
4G/WIFISupport 4G and compatible with GPRS, EDGE, etc; built-in WiFi
GPS (Optional)Supporting GPS, optional BD/GLONASS
G-SensorBuilt-in G-sensor
System UpgradingSupporting SD/SSD upgrading and net remote upgrading
Memory Card1×2TB SSD 2.5 inch SATA + 2×256G SD (max.)
Camera
Video Input, Output4-channel video input, 1 channel video output; 1.0Vp-p, 75Ω
OSDCharacter superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression FormatCompression coding applying H.264 high-performance processor
Dual-StreamSupported
Preview FunctionPreview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame RatePAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
ResolutionCIF, D1, 720P, 1080P selectable, supporting up to 4 channels of 720P
Others
Temperature-25℃ ~ +60℃
Humidity10% ~ 95%
Size154 (L) × 148 (W) × 39 (H) mm
WeightNW: 1.05KG; GW: 1.35KG
