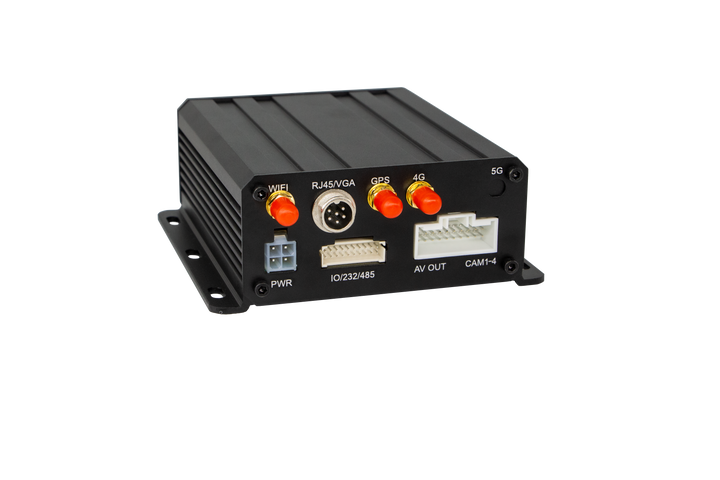

MC904P 4-Channel AI MDVR
MC904P is a 4G MDVR that supports 4 channels of 1080P video input. It features a unique design with one 1TB SSD and one 512GB SD card. This is another version of MC904 with a larger storage capacity.
The device has an aluminum alloy shell, ensuring good heat dissipation. It supports emergency alarm function, 4-channel digital signal input, 1-channel digital signal output, and 2 RS232 serial ports for connecting various peripherals. Additionally, the device is equipped with built-in AI algorithms, supporting ADAS, DMS, BSD, and 360-degree video stitching. It effectively helps drivers enhance transportation safety and reduce pedestrian and vehicle accidents.
Downloads:
Book A Demo Today, And Explore more
Main Features
H.265/H.264 encode
H.265/H.264 encoding and decoding to improve the memory space utilization.
Multiplex I/O
Support up to 4 digital input interfaces, 1 digital output interface, 2 RS232 interfaces. External devices such as RFID reader, fuel sensors and PTZ can be integrated.
Large Memory
Supports 1TB SSD and one 512GB SD card.
AI Algorithm
The device supports DMS, ADAS and BSD three algorithms.
Convenient Operation
Configured with a graphical menu operation interface, you can use the mouse or the remote control to configure the parameters.
Specifications
Hardware
| Operation system | Linux |
|---|---|
| CPU | ARM Cortex CA9 Dual-Core +NPU@0.7T |
| GNSS | GPS+BDS (with external G-mouse) |
| Memory | DDR 512M 1*1TB SSD (M.2 SATA protocol) + 1*512GB SD card |
| G-sensor | 3-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Standard SIM |
| LED | Red(Power), Green(GPS & 4G & WIFI & SD & HDD) |
| I/O ports | 4*digital inputs, 1*digital output, 2*RS232 2*RS232 port or 1*RS485 port and 1*RS232 |
| Others | 1-channel voice intercom interface, which can connect the voice handle |
Network
| Cellular | LTE + WCDMA + GSM |
|---|---|
| Bands |
MC904P-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 MC904P-LA: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 MC904P-NA: FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
Cameras
| Extended | 4-CH AHD, 1.0Vp-p, 75Ω, 1080P |
|---|---|
| ADAS | Yes |
| DMS | Yes |
| BSD | Yes |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 60 fps |
| Compression format | G.711A |
Others
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | 8% to 90% |
| Net weight | 450g |
| Dimension | 195mm*183mm*60mm |
| Certification | CE/CITC/RoHS |
