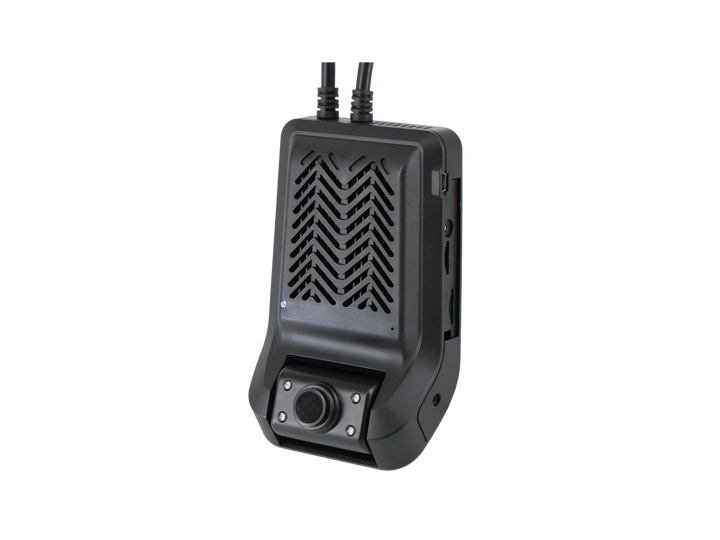

MC401N is an advanced dash camera with 4 channel lens supporting AI processor to detect driving events such as lane departure, forward collision, headway monitoring warning and improper driver behavior such as using mobile phones, fatigue driving detection, smoking detection, lens covered detection to assist drivers in reducing traffic accidents and enhance fleet management efficiency.
High speed 4G network enable photos, videos and GPS position as required upload to the cloud for later evidence review purposes.
The device has 2 AI dash cameras and 2 extended cameras that capture clear images for double safety while driving.
MC401N offers 1080P HD resolution video with microphone and speaker, providing clear live video for remote vehicle monitoring.
1 * TF card for video storage, Max. 512GB.
1*RS232 serial port for external devices (e.g., fuel sensor, temperature sensor, RFID reader), 2*digital inputs (one reserved for the internal SOS button), and 1*digital output.
Providing a mobile app and a software platform for video preview and parameter configuration.
·Equipped with one 1080P Full HD camera and three 720P cameras, this system delivers multi-angle coverage, ensuring reliable accident documentation, driver monitoring, and passenger safety.
·For Public Transportation: Enhances operational oversight for buses and shuttles, protecting passengers and reducing liability.
·Integrates a SOS button that allows drivers to instantly trigger emergency alerts, transmit live video, and share GPS location during critical incidents.
·For Smart Mobility & Connected Vehicles: Integrates with telematics platforms for real-time monitoring, predictive analytics, and compliance reporting.
MC401N 4-Channel AI Dashcam. Detects lane departure, collision risks, and unsafe driver behavior like phone use or fatigue.
Watch the video to see it in action.
| Operation system | Linux |
|---|---|
| CPU | Dual-core CPU+NPU@1.0T |
| Memory | DDR 2G+TF card (Max.512G) |
| GNSS | GPS+BDS(with external G-mouse) |
| G-sensor | 3-axis acceleration sensor |
| Speaker | Yes |
| Mic | Yes |
| Sim card | Micro SIM |
| USB | Yes |
| LED | Red(Power), Green(Internet & video recording) |
| I/O ports | 2*digital inputs, 1*digital output, 1*RS232 |
| Cellular | 4G LTE Cat.1 |
|---|---|
| Bands | FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 |
| WIFI | 2.4GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019 JT/T1076-2016, JT/T1078-2016 |
| Front | 1080P ADAS/125°(HFoV) |
|---|---|
| Cabin | 720P IR night vision DMS/105°(HFoV) |
| External 1 | 720P |
| External 2 | 720P |
| Video encoding | H.264/H.265, default H.264 |
| Video standards | PAL, NTSC |
| Video resolution | Options: 1080P/720P/D1 Total 1080P at 100 fps |
| Compression format | G.711A |
| Power supply | DC: +9V ~ +36V |
|---|---|
| Operation Temperature | -20°C to +70°C |
| Operation Humidity | 20% to 80% |
| Net weight | 240g |
| Dimension | 120mm*77mm*55mm |
| Certification | CE/FCC/RoHS |
