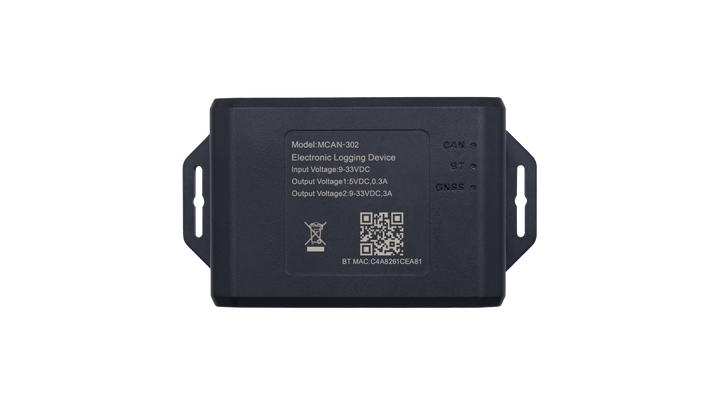

MCAN-302 CAN Data Box
- Multi-Protocol Support: Reads vehicle data via J1939, J1587, and EOBD.
- Built-in GNSS: High-precision ceramic GPS antenna for real-time positioning.
- Bluetooth 5.1: Enables wireless data transmission with low power usage.
- ELD Compliant: Meets North American Electronic Logging Device standards.
- Dual Power Output: Provides 9–33VDC and 5VDC to external peripherals.
- ACC Signal Output: Detects ignition status to trigger connected devices.
- Firmware Upgradable: Supports FOTA and local serial port updates.
- Rugged & Compact: Operates from -20°C to +85°C; easy plug-and-play design.
Downloads:
Book A Demo Today, And Explore more
MCAN-302 Product Specifications
| Input Voltage | 9–33VDC |
|---|---|
| Output Port | 10-Pin (PH3.0 2*5-Pin) |
| Working Modes | Working Mode (Ignition On), Sleep Mode (Ignition Off) |
| Connection | OBDII and J1939 9P to 10P Molex-3.0 connector |
| LED Indication | Blue: Bluetooth, Green: GNSS, Orange: OBD |
| Bluetooth | BLE 5.1 |
| Operating Temperature | -20℃ to +85℃ |
| Operating Humidity | 5% ~ 95% (Non-condensing) |
| Dimensions (L×W×H) | 70 × 50 × 20 mm |
| Weight | 60g |
